Guardian Floor Drain Lock


The Guardian FLOOR Drain-Lock replaces old, broken, or stolen drain grates with an identical drain cover that features our patented locking system.  Your typical drain cover can easily be removed with a screw driver, but this Drain-Lock requires a unique tool so that only the appropriate staff can remove the cover and access your facility drains.

Installing a Guardian Floor Drain Lock saves you money as you don't need to replace the Floor drain housing or Drill and tap out broken screws. Simply remove the Existing Floor drain and replace it with a single lockable Guardian Floor Drain Lock and, when it is time for scheduled maintenance there is no worry about breaking, stripping, or losing tiny screws down the drain. The bolt to the Guardian drain lock is part of the assembly unable to be removed or lost. You can quickly and efficiently unlock and remove the entire 1 piece assembly for servicing and restore to its original and secured home in seconds

GDL-SFD-3500-Z 4.68" Zurn Style

GDL-RFD-3500-S  4.70" JR Smith Style
GDL-RFD-3500-J  4.65" Josam Style
GDL-RFD-3500-Z  5.00" Zurn Style

Guardian Floor Drain Lock Video

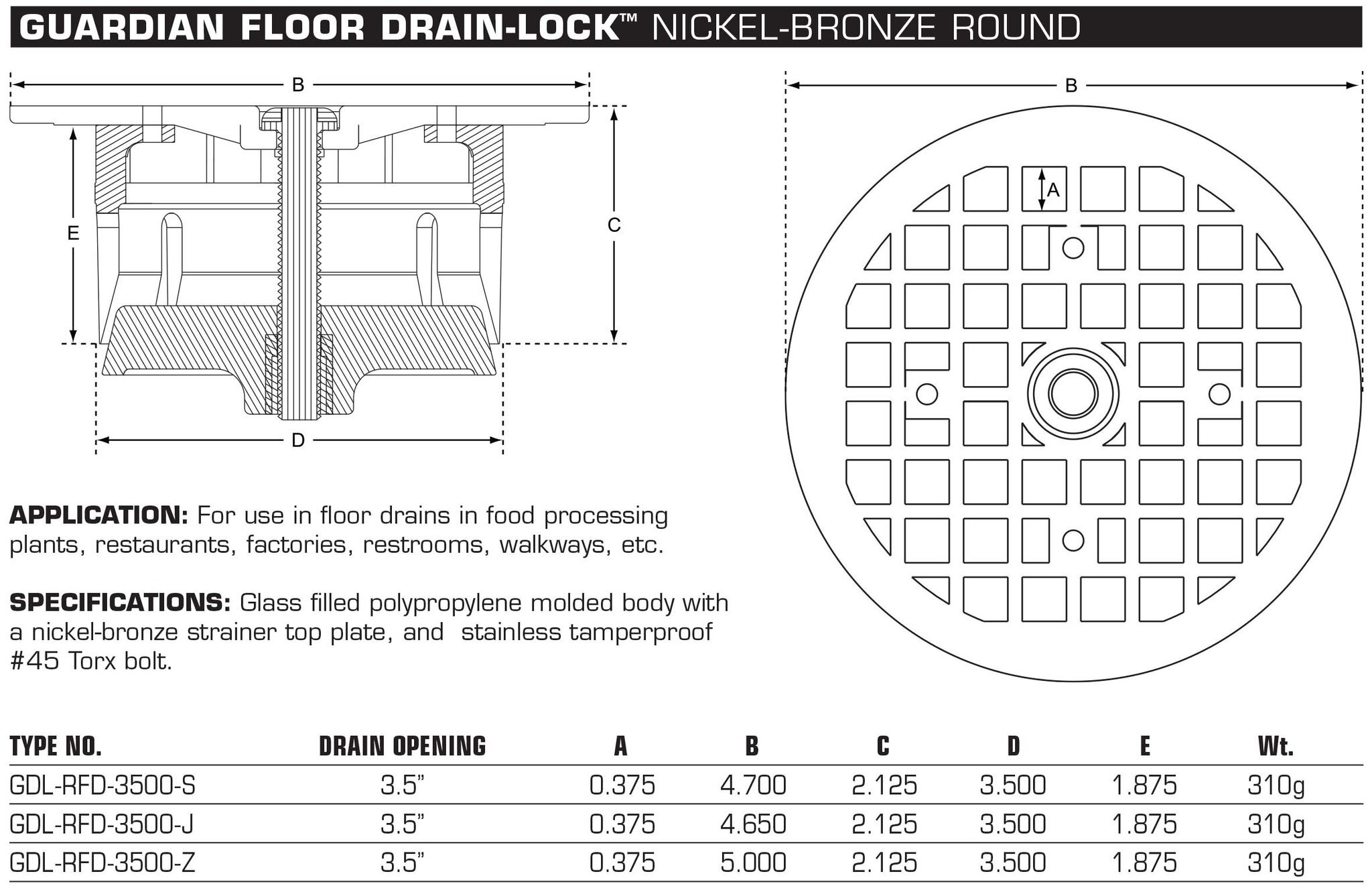

 --> Click here to view Guardian FLOOR Drain-Lock Sizing Chart and Installation Guide
