Grease Traps

Grease Traps for restaurants

Drain-Net is your leader in providing grease management solutions for restaurants, commercial kitchens, and other foodservice facilities.  The purpose of grease traps (also called grease interceptors) is to allow separation of solids and grease, to contain them in a holding facility, and to prevent these harmful wastes from entering the main sewer system or septic tank.  Traditional metal grease traps are known to corrode due to the high pH level in most waste water. Plumbing and foodservice professionals have therefore turned to plastic grease traps.  Please CLICK HERE for CAD drawings.

International orders:  Please call for accurate shipping quotes for grease traps for orders shipping outside of the US.





  • 4 GPM Grease Trap D4804 - plumbing 4 GPM Grease Interceptor D4804, PDI certified

    Compact Grease Interceptor 4 GPM

    Specifications View and download the 4 GPM Spec Sheet Flow Rate: 4 GPM Grease / Sludge Capacity: 8 lbs Approximate Weight: 10 lbs Standard Inlet / Outlet: 2" Bottom of unit to center of inlet/outlet: 7" Liquid Holding Capacity: 2.3...

    $186.60
    Add to Cart
  • Grease Interceptor 30 LB / 15 GPM Grease Interceptor 30 LB / 15 GPM

    Grease Interceptor 30 LB / 15 GPM

    Using our original patented design, this 15 GPM Grease Interceptor is typically installed in low flow applications such as food trucks, concession stands, and small kitchens. Supplied with our accessible flow control, this model offers durability and...

    $274.00
    Choose Options
  • Low Boy Grease Interceptor 50 LBS / 25 GPM Low Boy Grease Interceptor 50 LBS / 25 GPM

    Low Boy Grease Interceptor 50 LBS / 25 GPM

    For those tight on-floor grease interceptor applications where space is at a premium, this 11" tall GI making is truly a low profile solution. Features and Benefits of the "Low-Boy" Grease Interceptor Based on the same dimensional footprint as our...

    $432.00
    Choose Options
  • Compact Grease Interceptor 20 LB /  10 GPM Compact Grease Interceptor 20 LB /  10 GPM

    Compact Grease Interceptor 20 LB / 10 GPM

    Drain-Net Technologies offers the very best in Grease Interceptor (Grease Trap) technology. We help restaurants, cafeterias, hospitals, food processing plants, hotels, and commercial kitchens keep FOG's (Fats, Oils, and Grease) out of their plumbing...

    $274.00
    Choose Options
  • 20 GPM Grease Trap Grease Interceptor 40LB / 20GPM

    Grease Interceptor 40LB / 20GPM

    Drain-Net Technologies offers the very best in Grease Interceptor (Grease Trap) technology. We help restaurants, cafeterias, hospitals, food processing plants, hotels, and commercial kitchens keep FOG's (Fats, Oils, and Grease) out of their plumbing...

    $432.00
    Choose Options
  • Grease Interceptor 50 LBS / 25GPM

    Grease Interceptor 50 LBS / 25GPM

    Drain-Net Technologies offers the very best in Grease Interceptor (Grease Trap) technology. We help restaurants, cafeterias, hospitals, food processing plants, hotels, and commercial kitchens keep FOG's (Fats, Oils, and Grease) out of their plumbing...

    $432.00
    Choose Options
  • Big Dipper W200-IS Automatic Grease Trap (20 GPM) Big Dipper W200-IS Automatic Grease Trap (20 GPM)

    Big Dipper W200-IS Automatic Grease Trap (20 GPM)

    The Drain-Net Big Dipper W-200-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator for floor mounted or partially recessed installation, rated at 20...

    $3,031.00
    Add to Cart
  • 50 GPM Grease Trap Interceptor Grease Interceptor 100 LBS /  50GPM

    Grease Interceptor 100 LBS / 50GPM

    Typically located in-floor when installed, the 50 GPM Grease Interceptor is one of the larger units that can be installed within the restaurant. Like the 35 GPM they use an additional diffuser baffle in conjunction with the inlet baffle - the removable...

    $668.00
    Choose Options
  • Compact Grease Interceptor 14 LB / 7 GPM Compact Grease Interceptor 14 LB / 7 GPM

    Compact Grease Interceptor 14 LB / 7 GPM

    Drain-Net Technologies offers the very best in Grease Interceptor (Grease Trap) technology. We help restaurants, cafeterias, hospitals, food processing plants, hotels, and commercial kitchens keep FOG's (Fats, Oils, and Grease) out of their plumbing...

    $274.00
    Choose Options
  • 18" Extension Riser Pair for XL Interceptor 18" Extension Riser Pair for XL Interceptor

    18" Extension Riser Pair for XL Interceptor

    The ‘cut to suit’ Extension Riser is supplied with an additional frame interfacing directly with the tank. The original cover is removed for installation and relocated to the top of the extension when ready to backfill. The air and water...

    $695.00
    Add to Cart
  • Endura XL Grease Interceptor 100 GPM Endura XL Grease Interceptor 100 GPM

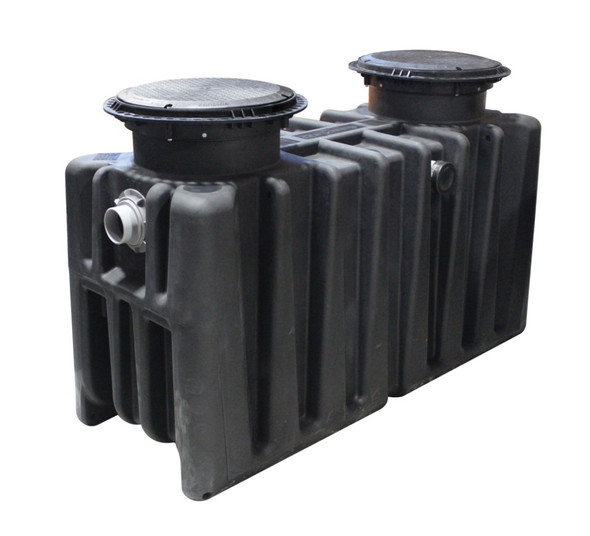

    Endura XL Grease Interceptor 100 GPM

    Flow Management Endura XL is a Hydromechanical Grease Interceptor (HGI). Unlike traditional, large capacity Gravity Grease Interceptors (GGI), our design uses more than just the natural buoyancy of fats, oils and grease (FOG) to separate them from waste...

    $3,995.00
    Choose Options
  • Endura XL Grease Interceptor 75 GPM Endura XL Grease Interceptor 75 GPM

    Endura XL Grease Interceptor 75 GPM

    Flow Management The Endura XL is a Hydromechanical Grease Interceptor (HGI). Unlike traditional, large capacity Gravity Grease Interceptors (GGI), our design uses more than just the natural buoyancy of fats, oils and grease (FOG) to separate them from...

    $2,133.00
    Choose Options
  • Solids Basket Accessory for Grease Traps

    Solids Basket Accessory for Grease Traps

    The performance of every Grease Trap is impacted by the accumulation of food debris and foreign objects that pass down the drain. Solid food debris left in Grease Traps or Grease Interceptors for more than 5-7 days will cause foul odors and will...

    $164.00
    Add to Cart
  • Big Dipper W250-IS Automatic Grease Trap (25 GPM) Big Dipper W250-IS Automatic Grease Trap (25 GPM)

    Big Dipper W250-IS Automatic Grease Trap (25 GPM)

    Thermaco Big Dipper W-250-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator for floor mounted or partially recessed installation, rated at 25 gallons...

    $3,335.00
    Add to Cart
  • Big Dipper W350-IS Automatic Grease Trap (35 GPM) Big Dipper W350-IS Automatic Grease Trap (35 GPM)

    Big Dipper W350-IS Automatic Grease Trap (35 GPM)

    The Drain-Net Big Dipper W-350-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator for floor mounted or partially recessed installation, rated at 35...

    $3,668.00
    Add to Cart
  • Freedom Filter - Effluent Filter for Grease Traps Freedom Filter - Effluent Filter for Grease Traps

    Freedom Filter - Effluent Filter for Grease Traps

    The Freedom Filter is ideal for grease trap applications to keep TSS (Total Suspended Solids) and grease out of wastewater.  The 1/32” filtration has been shown to reduce fats, oils, and grease (FOG) by as much as 60% to 98%! The filter...

    $399.00
    Add to Cart
  • 35 inch Extension Riser Pair for XL Interceptor 35 inch Extension Riser Pair for XL Interceptor

    35 inch Extension Riser Pair for XL Interceptor

    The ‘cut to suit’ Extension Riser is supplied with an additional frame interfacing directly with the tank. The original cover is removed for installation and relocated to the top of the extension when ready to backfill. The air and water...

    $865.00
    Add to Cart
  • Big Dipper W500-IS Automatic Grease Trap (50 GPM) Big Dipper W500-IS Automatic Grease Trap (50 GPM)

    Big Dipper W500-IS Automatic Grease Trap (50 GPM)

    Thermaco Big Dipper W-500-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator for floor mounted or partially recessed installation, rated at 50 gallons...

    $4,035.00
    Add to Cart
  • Grease Interceptor 75 GPM for commercial kitchen plumbing Grease Interceptor 75 GPM for restaurant plumbing

    Grease Interceptor 75 GPM

    Specifications Flow Rate: 75 GPM Grease / Sludge Capacity: 150 lbs Approximate Weight: 64 lbs Standard Inlet / Outlet: 3" Bottom of unit to center of inlet/outlet: 20" Liquid Holding Capacity: 61.8 gal Dimensions: 44" Length X 25" Width X 24"...

    $878.55
    Add to Cart
  • Grease Interceptor 70LBS /  35GPM

    Grease Interceptor 70LBS / 35GPM

    Drain-Net Technologies offers the very best in Grease Interceptor (Grease Trap) technology. We help restaurants, cafeterias, hospitals, food processing plants, hotels, and commercial kitchens keep FOG's (Fats, Oils, and Grease) out of their plumbing...

    $668.00
    Choose Options
  • Solids Interceptor Stand Alone Unit Solids Interceptor Stand Alone Unit

    Solids Interceptor Stand Alone Unit

    Did you know that the performance of every grease interceptor is impacted by the discharge and accumulation of food debris and foreign objects that pass down the drain?  That's why we offer this stand alone solids interceptor that captures 98% of...

    $449.00
    Add to Cart
  • 15 GPM Automatic Grease Removal Device 15 GPM Automatic Grease Removal Device

    15 GPM Automatic Grease Removal Device

    The Drain-Net Goslyn AGRD is the easiest and most effective automatic grease removal device on the market.  Goslyn gets all the oil and is always working 24 hours a day 365 days a year. There are no timers to set or adjust.  No belts, pulleys,...

    $4,770.00
    Add to Cart
  • 150 GPM Trapzilla Solids Separator, TSS-95 150 GPM Trapzilla Solids Separator, TSS-95

    150 GPM Trapzilla Solids Separator, TSS-95

    QUALIFIES FOR FREE SHIPPING VIA UPS GROUND IN CONTIGUOUS US ONLY The TSS-95 Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids.  Ideally, a Trapzilla Solids Separator would be...

    $2,579.00
    Choose Options
  • 75 GPM Trapzilla Solids Separator 75 GPM Trapzilla Solids Separator

    75 GPM Trapzilla Solids Separator

    QUALIFIES FOR FREE SHIPPING VIA UPS GROUND IN CONTIGUOUS US ONLY The TSS-70 Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids.  Ideally, a Trapzilla Solids Separator would be...

    $2,263.00
    Choose Options
  • Big Dipper W-750-IS Big Dipper W-750-IS

    Big Dipper W-750-IS

    The Big Dipper W-750-IS Automatic Grease Removal Device is capable of accepting up to a 75 GPM (4.73 l/s) flow.  The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates...

    $5,541.00
    Add to Cart
  • Custom Grease Interceptors

    Custom Grease Interceptors

    Drain-Net Technologies can engineer and build a custom grease interceptor for your unique application.  Often times older facilities have space limitiations making a standard grease interceptor un-workable.  Rather than embarking on a huge...

  • Endura XL Grease Interceptor 150 GPM Endura XL Grease Interceptor 150 GPM

    Endura XL Grease Interceptor 150 GPM

    Flow Management Endura XL is a Hydromechanical Grease Interceptor (HGI). Unlike traditional, large capacity Gravity Grease Interceptors (GGI), our design uses more than just the natural buoyancy of fats, oils and grease (FOG) to separate them from waste...

    $4,095.00
    Choose Options
  • Grease Interceptor 100 GPM - 250 LBS Grease Interceptor 100 GPM - 250 LBS

    Grease Interceptor 100 GPM - 250 LBS

    The Drain-Net Technologies' APGI Series Grease Interceptor is designed to separate grease, oils, fats, and other sediment from large Commercial and Industrial sources.  Made of seamless High Density Polyethylene (HDPE), the APGI series interceptor...

    $3,857.00 $2,279.97
